Monel is used for marine engineering, chemical and hydrocarbon processing equipment, valves, pumps, shafts, fittings, fasteners, and heat exchangers. It is also used as part of metal instruments and frames of eyeglasses.
This is useful in oil extraction, marine and chemical processing, seawater pumps and in the pulp and paper industry. Usually, for seawater piping, pipes and tubes are constructed using a combination of both MONEL alloy 400 and MONEL alloy K-500.

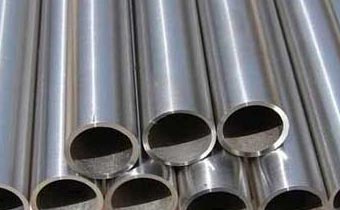

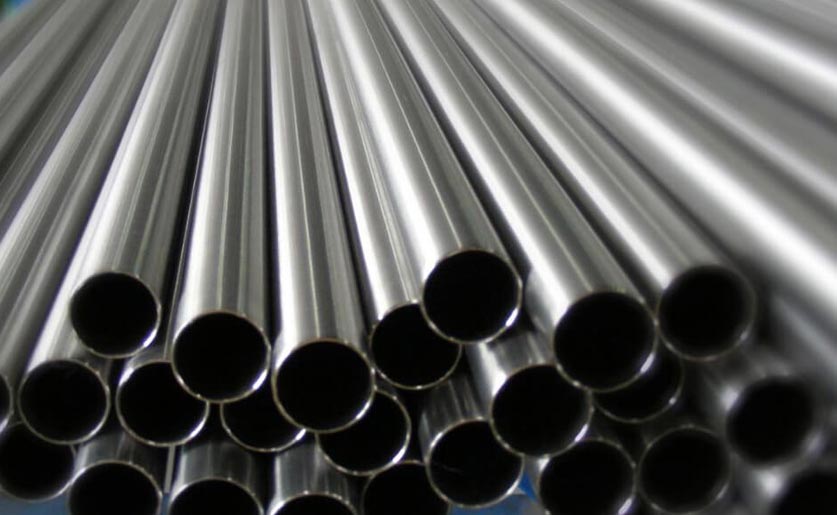

View More DetailsSpecification | ASTM B165, B725 / ASME SB165, SB725 |
Dimension Standard | ANSI B36.19M, ANSI B36.10 |
Pipe Size | 1/4" sch 10 to 16" sch 80 |
Outside Diameter | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness |
Type | Seamless / ERW / Welded / Fabricated Pipes |
Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
Its uses extend into gas storage units and process vessels, as well as in the pulp and paper industry. Due to its ability to withstand high operating temperatures, it's also a popular choice for heat exchanger piping and the explosives industry.

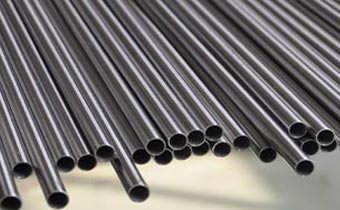

View More DetailsTube Size | 3.35 mm OD To 101.6 mm OD |
Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
Wall thickness | 0.020" –0.220", (special wall thicknesses available) |
Standards | ASTM B163, ASTM B730 /ASME SB163, ASME SB730 |
Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
Monel is used for marine engineering, chemical and hydrocarbon processing equipment, valves, pumps, shafts, fittings, fasteners, and heat exchangers. It is also used as part of metal instruments and frames of eyeglasses.

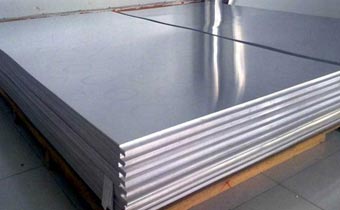

View More DetailsSpecification | ASTM B127/ ASME SB127 400 Plate Stock Available |
Grades | Monel 400 (UNS N04400, Alloy 400, 2.4360) |
Thickness | 7 gauge to 28 gauge or 3.664mm to .321mm |
Width Range | 30" to 240" |
Length Range | Up to144" Non-Standard or Longer Lengths Available Upon Request |
Finishes | 2D, 2B, 4Pol, BA, X10, XL, Buff, XL Blend S, SATIN (Met with Plastic Coated), NO (8), Hairline, NO.1, NO.4, Mirror Finish |
