Copper nickel is most commonly used in applications such as electrical and electronic products, tubes for condensers in ships and power plants, various marine products, including valves, pumps, fittings, and sheathing for ship hulls.
Types Of Copper Nickel:

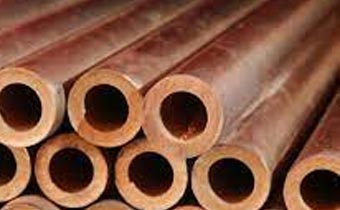

Copper Nickel Pipe
Copper or Cupro Nickel pipes are commonly used in seawater piping due to its complete resistance to barnacles and other marine organisms. Its resistance makes seawater fire fighting systems, desalination water systems, and similar applications much more reliable.
View More Details| Specifications | ASTM / ASME SB 111 / 151 / 466 |
| Standard | ASTM, ASME and API |
| Size | 1/2" TO 6' IN OD & NB IN Various SWG & SCH |
| Outer Diameter | 4.00 to 22.00 mm |
| Well Thickness | Between 0.15mm and 1.50 mm |
| Length | Single Random, Double Random & Required Length |
| Schedule | SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Grades | Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |

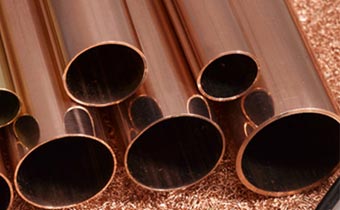

Copper Nickel Tube
Copper-nickel alloys are also used for hydraulic tubing, including brake tubing. Seawater cooling and firewater systems, heat exchangers, condensers and piping, platform riser and leg sheathing, boat hulls, oil coolers, hydraulic tubing, antimicrobial touch surfaces.
View More Details| Specifications | ASTM / ASME SB 111 / 151 / 466 |
| Standard | ASTM, ASME and API |
| Size | 1/2" TO 6' IN OD & NB IN Various SWG & SCH |
| Outer Diameter | 4.00 to 22.00 mm |
| Well Thickness | Between 0.15mm and 1.50 mm |
| Length | Single Random, Double Random & Required Length |
| Schedule | SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Grades | Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640 |

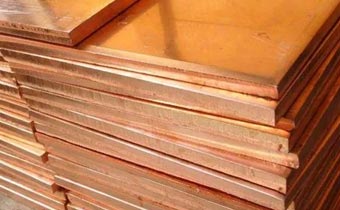

Copper Nickel Plate
An electroplated nickel coating will increase the copper substrate's corrosion resistance and operating temperature. However, because of nickel's hardness, nickel-plated conductors tend to exhibit greater crimp termination variability than other metal materials.
View More Details| Thickness Range | 0.063 to 0.375 in |
| Length | 96 in |
| Plate Thickness | 0.25 to 5 in |
| Plate Width | 36 to 60 in |
| Plate Length | Up to 240 in |
