Inconels are a class of nickel-chrome-based super alloys characterized by high corrosion resistance, oxidation resistance, strength at high temperatures, and creep resistance. Inconel is able to withstand elevated temperatures and extremely corrosive environments due to two factors.

Types Of Inconel:

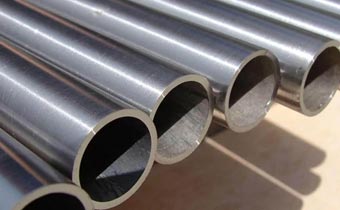

Inconel Pipe

As such, pipes and tubes made with INCONEL alloy 625 can be used in sour gas pipelines, as well as in seawater heat exchangers, power plants and chemical processing. More recently, it's also found used in biofuel production as part of the superheater tubing systems.

View More Details

Specifications ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517
Dimensions ASTM, ASME and API
Size 1/8″NB TO 30″NB IN
Specialized in Large Diameter Size
Schedule SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc
Length Single Random, Double Random & Cut Length.

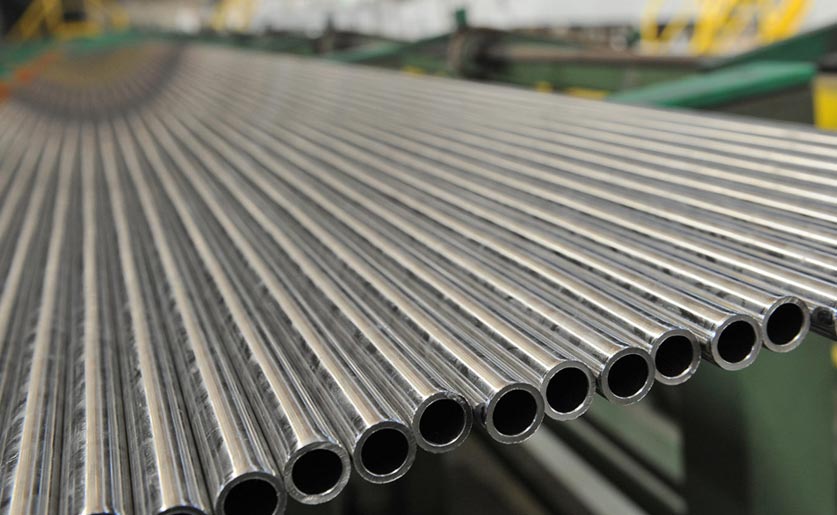

Inconel Tube

These tubes are used in roller hearth ovens where they are exposed to blasts of very high temperatures, as well as the corrosive glazes applied to tiles. It's also used for oxygen injection tubes in metal and glass making, as well as condenser tubes in sour-water conditions.

View More Details

Size 15 NB to 150 NB IN
Type Seamless / ERW / Welded / Fabricated / Hollow / LSAW Pipes
Wall thickness .035" –.095′, (special wall thicknesses available)
Schedule SCH5, SCH10, SCH40, STD, SCH80, SCH160
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form Round, Square, Rectangular, Hydraulic, Straight or ‘U’ bent Tubes Etc.
Length Single Random, Double Random & Cut Length.

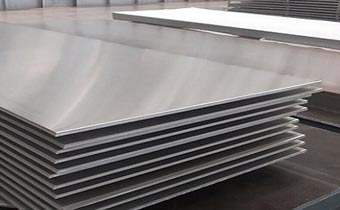

Inconel Plate

Inconel sheets have superior strength, workability, and formability properties making them an ideal choice for a variety of applications. They are often used in aircraft construction, chemical processing equipment, power generation plants, automotive components, industrial equipment, and marine components.

View More Details

Grades Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), ASTM B168 Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800, 1.4876)
Thickness 7 gauge to 28 gauge or 3.664mm to .321mm
Width Range 30" to 240"
Length Range Up to144" Non-Standard or Longer Lengths Available Upon Request
Finishes 2D, 2B, 4Pol, BA, X10, XL, Buff, XL Blend S, SATIN (Met with Plastic Coated), NO(8), Hairline, NO.1, NO.4, Mirror Finish
Form Inconel Coils, Inconel Foils, Inconel Rolls, Inconel Plain Sheet, Inconel Shim Sheet, Inconel Perforated Sheet, Inconel Chequered Plate, Inconel Strip, Inconel Flats, Blank (Inconel Circle), Inconel Ring (Flange)
